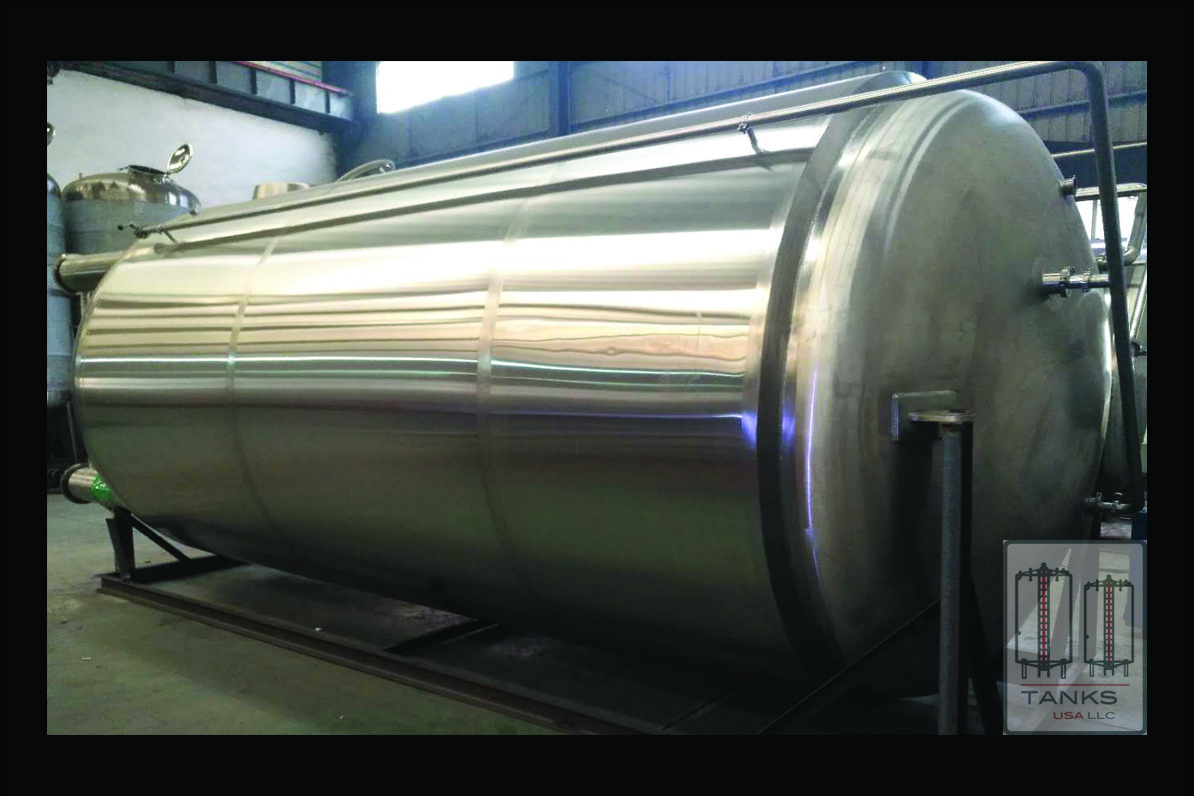

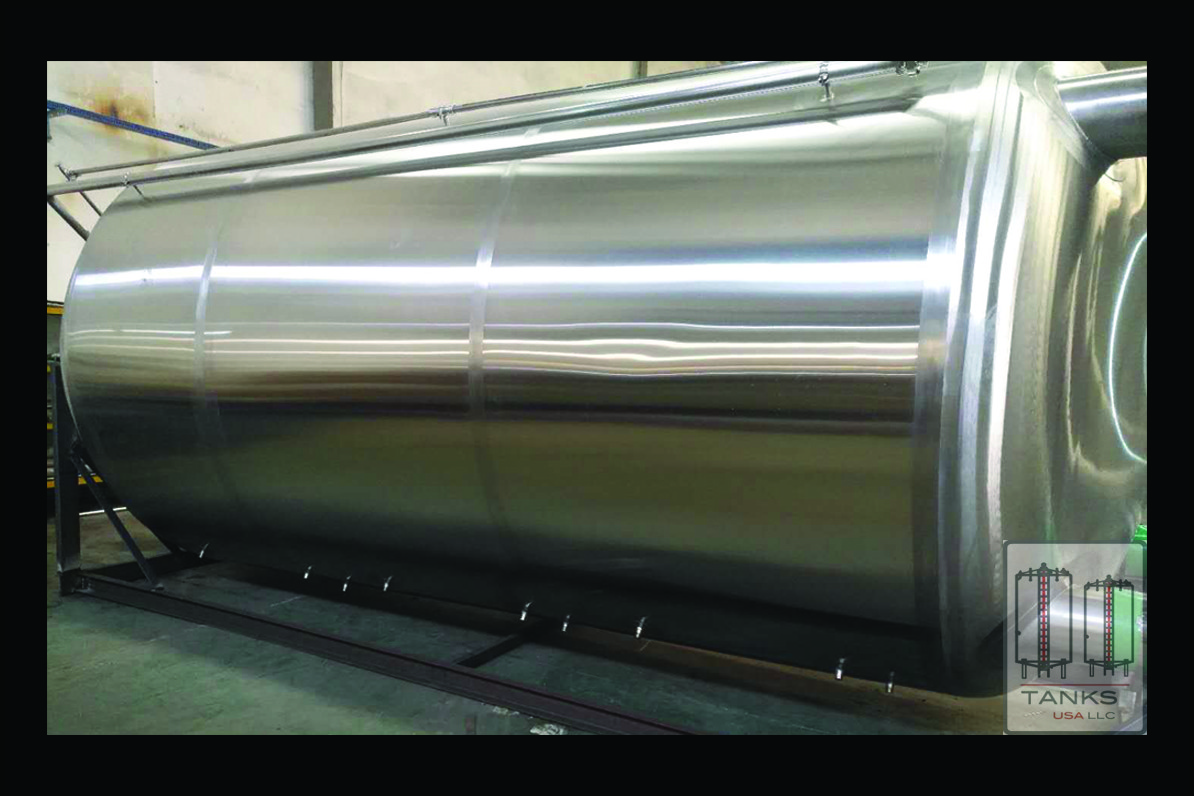

220 Barrel Stainless Steel Bright Tank

$92,000.00 $57,000.00

220 Barrel Bright Jacketed Stainless Steel Tank – *Brand New*

     Height:                                   30 Feet

Capacity:

    Total Capacity:                      240  Barrels

    Usable Capacity:                   220  Barrels

    Air Space Capacity:                20  Barrels

    Maximum Space Usage:          91.67%

Description

220 Barrel Bright Jacketed Stainless Steel Tank – *Brand New*

30 FEET IN HEIGHT  —  BRAND NEW  —  PRICED TO SELL!!

FREE SHIPPING….Yes, we will cover the cost to ship this item to any location in the Continental United States!


Capacity:


    Total Capacity:                      240  Barrels

    Usable Capacity:                   220  Barrels

    Air Space Capacity:                20  Barrels

    Maximum Space Usage:          91.67%


Construction:


  Interior Construction

    Material Composition:         304 Stainless Steel

    Material Thickness:               11 Gauge

    Material Finish:                     #4 with all welds ground and polished to 180 grit


  Exterior Construction

    Material Composition:         304 Stainless Steel

    Material Thickness:               12 Gauge

    Material Finish:                     #4 with all welds ground and polished to 150 grit


Top Domed Head Interior

    Material Composition:         304 Stainless Steel

    Material Thickness:               09 Gauge

    Material Finish:                     #4 with all welds ground and polished to 180 grit


  Bottom Dished Interior

    Material Composition:           304 Stainless Steel

    Material Thickness:                09 Gauge

    Material Finish:                      #4 with all welds ground and polished to 180 grit

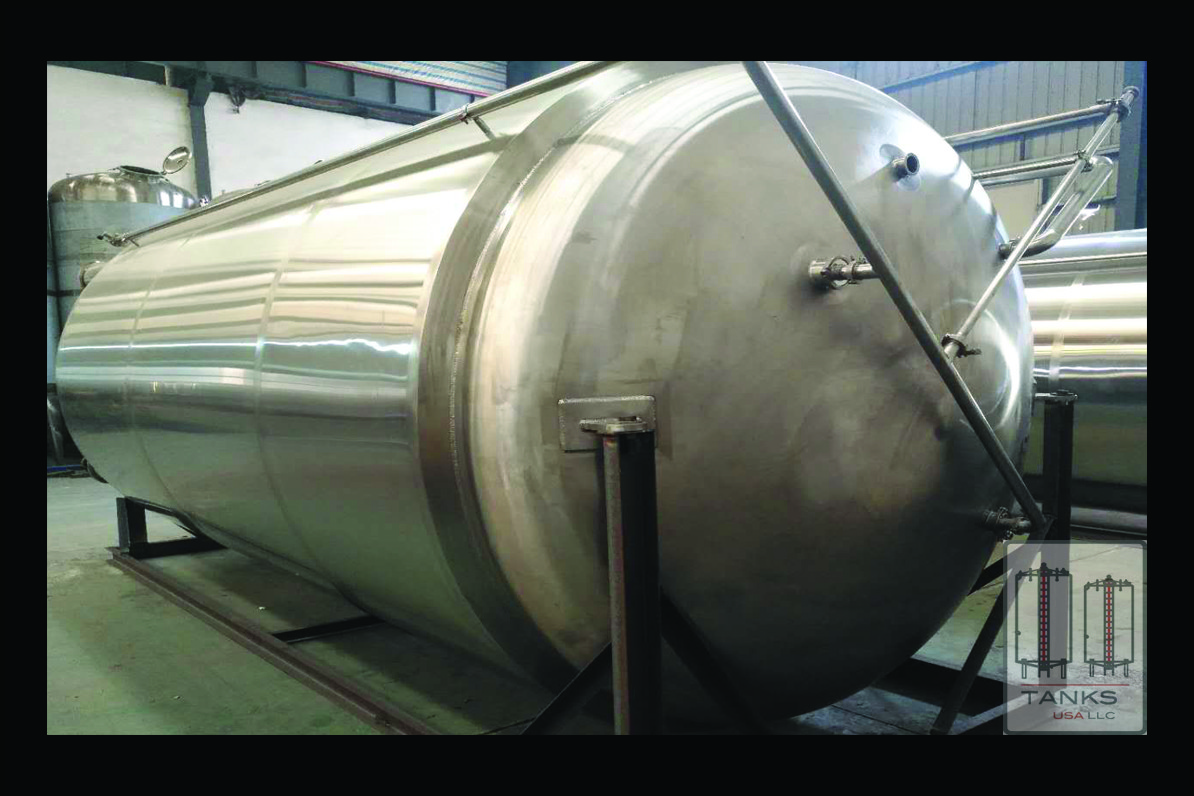

   Top Configuration:                   Domed Top

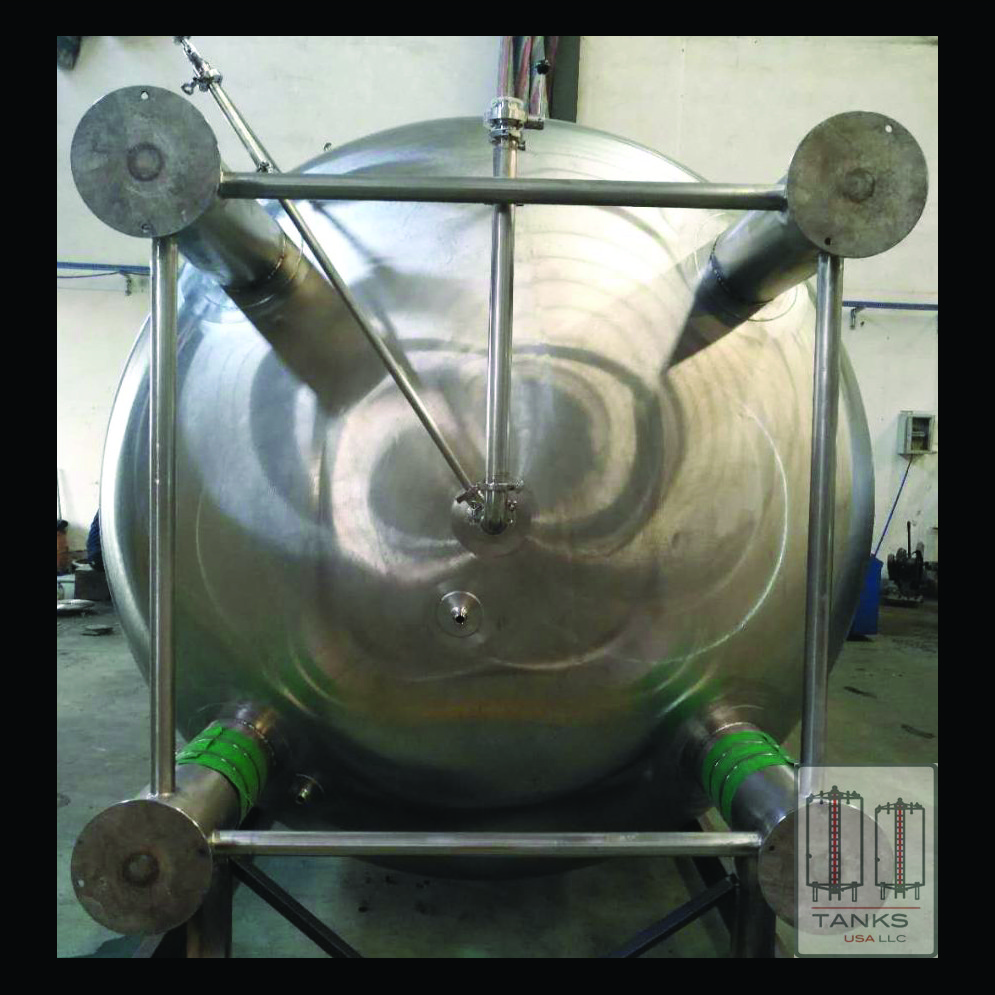

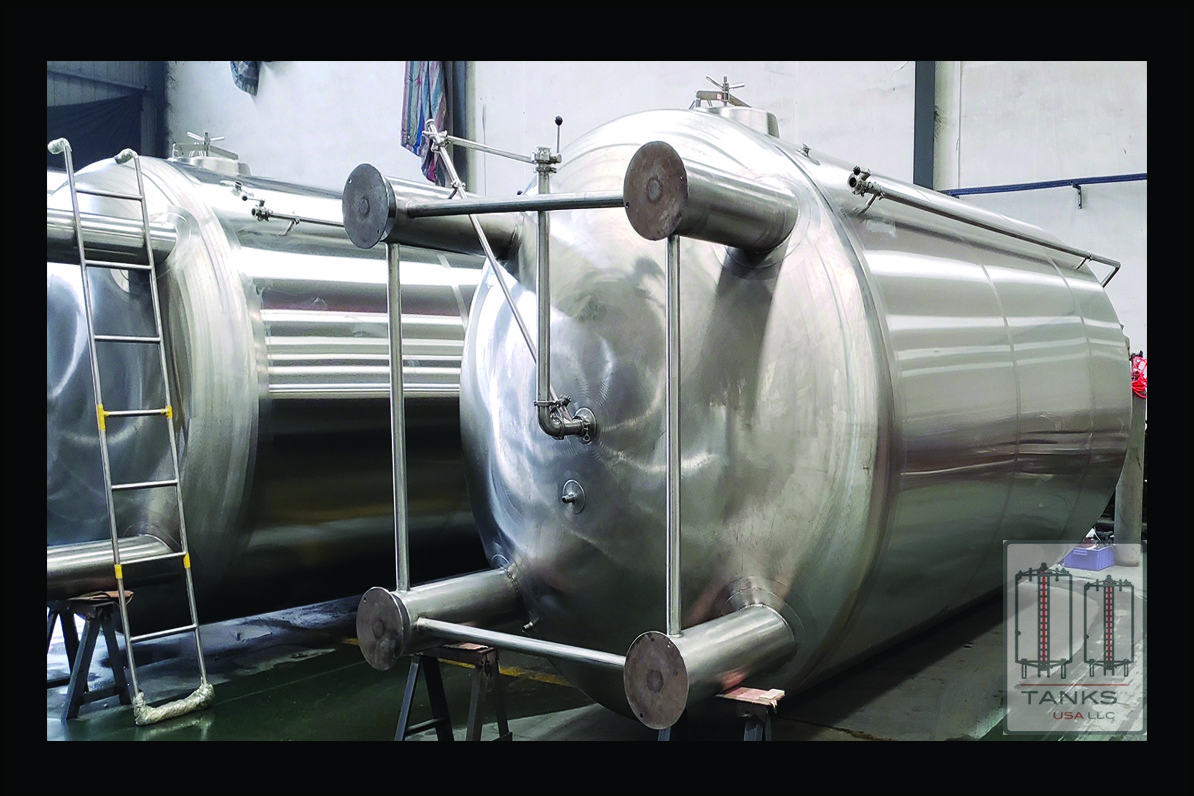

   Bottom Configuration:            Dished Bottom with Center Bottom Outlet

   Heat Transfer Surface(s):        Jacketed with three heat transfer zones

   Manway Door:                          Side Entering


Connections

  Product Inlet:                        2.000 Inches

 Product Outlet:                      2.000 Inches

  Clean In Place (C.I.P.):         1.500 Inches

 Pressure Relief Valve:           2.000 Inches

  CO2:                                      1.500 Inches

Coolant (Glycol / Water):       0.750 Inches


Accessories

  Spray Balls:                             Two (2) Rotating Spray Balls for C.I.P.

  Pressure Gauge:                       One (1) Product Internal Pressure Indicating Gauge

 Thermal Well:                             One (1) Thermal Well for Thermometer

  Thermometer:                            One (1) Product Temperature Indicating Gauge

  Sample Cock:                             One (1) Product Sample Outlet Valve

  Product Inlet Valve:                  One (1) Sanitary Product Inlet Valve (after product is

                                                             introduced to the tank, the valve is close)

 Product Outlet Valve:                One (1) Sanitary Product Outlet Valve (this valve

                                                             remains closed until opened when product is

                                                             to be removed from the tank)

 C.I.P. Solution Entry Valve:       One (1) Sanitary C.I.P. Solution Inlet Valve (this

                                                             valve remains closed being opened when

                                                             cleaning in place is started)
